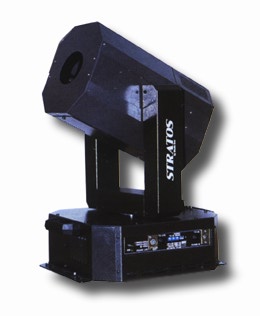

STRATOS 700MSR

  • Moving luminarie

    • The Stratos 700 MSR is a hi-res(12bit) moving luminaire that
    becomes a full automated lighting system that offers limitless possibilites for theatre,film,commercial photografy,industrial shows,concerts and television.
    It employs a Philiphs 700 watt lamp powered by a new square wawe switching power supply (option) that
    increases lumionus efficiency and permits flickerfree operation and extended lifetime.
    Spec.info
  • Pan / tilt movement 12 bit res. Smooth and accurate angular motion and
    repeatable positioning achieved trough a highperformance digital control
    system.Closed loop position control system based on the 87C575 microprocessor.
  • Pan displacement: 360 degrees.
    Time for revolotion: min.4 sec.max:>400 sec.(12 bit)- real time.
  • Tilt displacement: 300 degrees.
    Time for revolotion: min.3,5 sec. max:>400 sec.(12 bit)- real time.
  • Lamp type: Philiphs 700w MSR.
  • Color: 1 color wheel
  • Dimmer : Linear mechanical dimmer for the light beam intensity from 0-100%.
  • Strobe / blackout effect with frequency regulation and memory.
  • Control: DMX 512 input 12 channel (8 bit) or 14 channel (12 bit).
  • Gobos: 1 Gobowheel with 6 (5+1) interchageable static gobos with swing effect.
  • Gobos: 1 Rotating gobowheel with 6 (5+1) interchageable .
  • Iris to change the beam opening angle.
  • Focus to change the beam sharpness.

    Rental in Sweden:
  • Starlight AB Avesta
  • SSR Stagelight Stockholm

    For more info:
    stldinfo@tin.it
